SANODAL BLACK GL PASTE

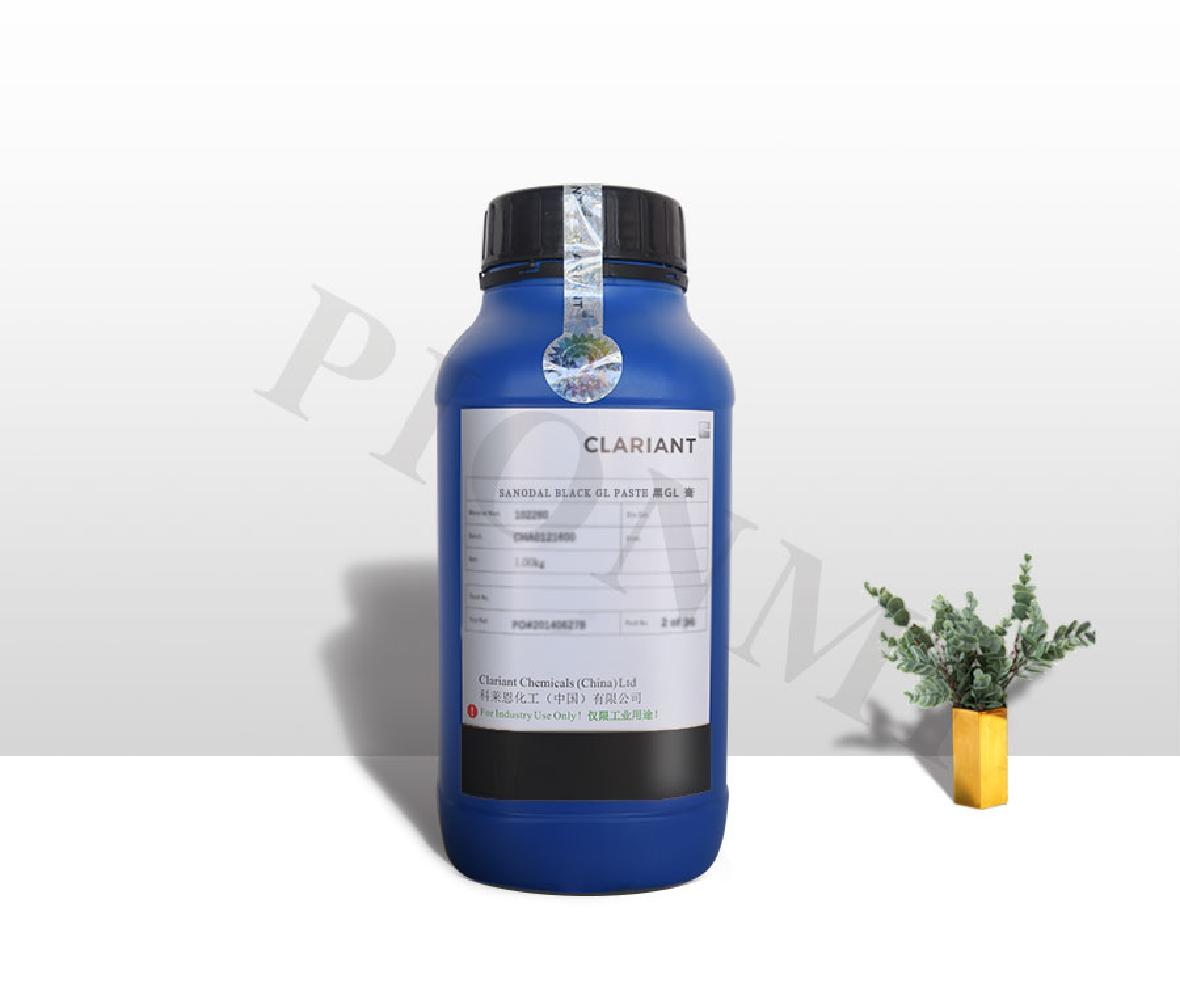

Sanodal® Black GL Paste



Sanodal® Black GL Paste is a homogeneous, water-soluble dye which is distinguished by high
fastness to light and weather.


Sanodal® Black GL Paste is suitable for interior and exterior architectural purposes.

1. Dye-specific data

 Shade: greenish black;
  at low concentrations bottle green shades
 Appearance: black paste
 Chemical character: homogeneous azo metal complex dye
 Density (20°C): 1150 g/l
 Solubility in water: miscible
 Storage stability: at least 1 year in closed containers between 0°C
  and 50°C
 Ecotoxicological data: see Safety Data Sheet.


2. Application conditions


 Concentration
temperature Dyeing Dyeing time
Bottle green shades
Standard layers (12µm) 0.1 - 10 g/l 25 - 60°C 10 - 20 min
Black dyeings
Standard layers  (12 μm) 30 g/l 55 - 60°C 15 - 20 min
Sanodal layers (25 μm) 30 g/l 55 - 60°C 30 - 40 min


 pH: 5.5 ± 0,5
 Buffer: The dyebaths are preferably buffered with
     8      g/l sodium acetate trihydrate
  + 0,4 ml/l acetic acid, pH 5.6
 Water quality: preferably deionized; dyeing is also possible in tapwater, but
  this can reduce the service life of the bath
 Sealing: preferably with Anodal® ASL (one or two stage).


3. Setting the dyebath

Before using, the content of the barrel has to be stirred in order to homogenize the paste.
When preparing the dyebath care must be taken that the dye is well dissolved. The dye can be
dissolved in deionized water in a separate container (5 parts water to 1 part dye). This stock
solution is then stirred into the dyebath.


4. Lightfastness of the dyeings

 Sanodal® Black GL Paste is distinguished by outstanding lightfastness.
 Lightfastness of Sanodal® dyeings: rating > 9 (ISO 2135).


5. Special remarks

 - Unsealed dyeings are virtually unstrippable in diluted nitric or sulphuric acid.
   They can be  stripped in nitric acid 10 % + potassium permanganate 5 %.
   After the treatment in Potassium permanganate, neutralization must be carried out for 1-5 min
   in a sodium bisulphite 5 % solution.

 - The dyebaths are sensitive to sulphate and aluminium; anodized objects should therefore be
   rinsed thoroughly before dyeing.


6.  Disposal of the dyebaths

 Spent dyebaths must be disposed of; e.g. with Anodal® WT-1 Liquid. The precipitation
method is described in detail in the Technical Information bulletin for Anodal WT-1 Liquid.

  The table below shows the additions required for precipitating Sanodal® Black GL Paste.

Precipitation FeCl3, 40 % Etching lye Anodal WT-1
Residual   Cobalt
method ml/g dye ml/g dye ml/g dye
Liquid      dye in        content in the filtrate the filtrate
mg/l mg/l
A 1.0 - 0.4 < 1 < 0.2
B 1.0 - 0.4 ~ 60 < 1.0
C - 0.5 0.8 ~ 30 < 1.0
